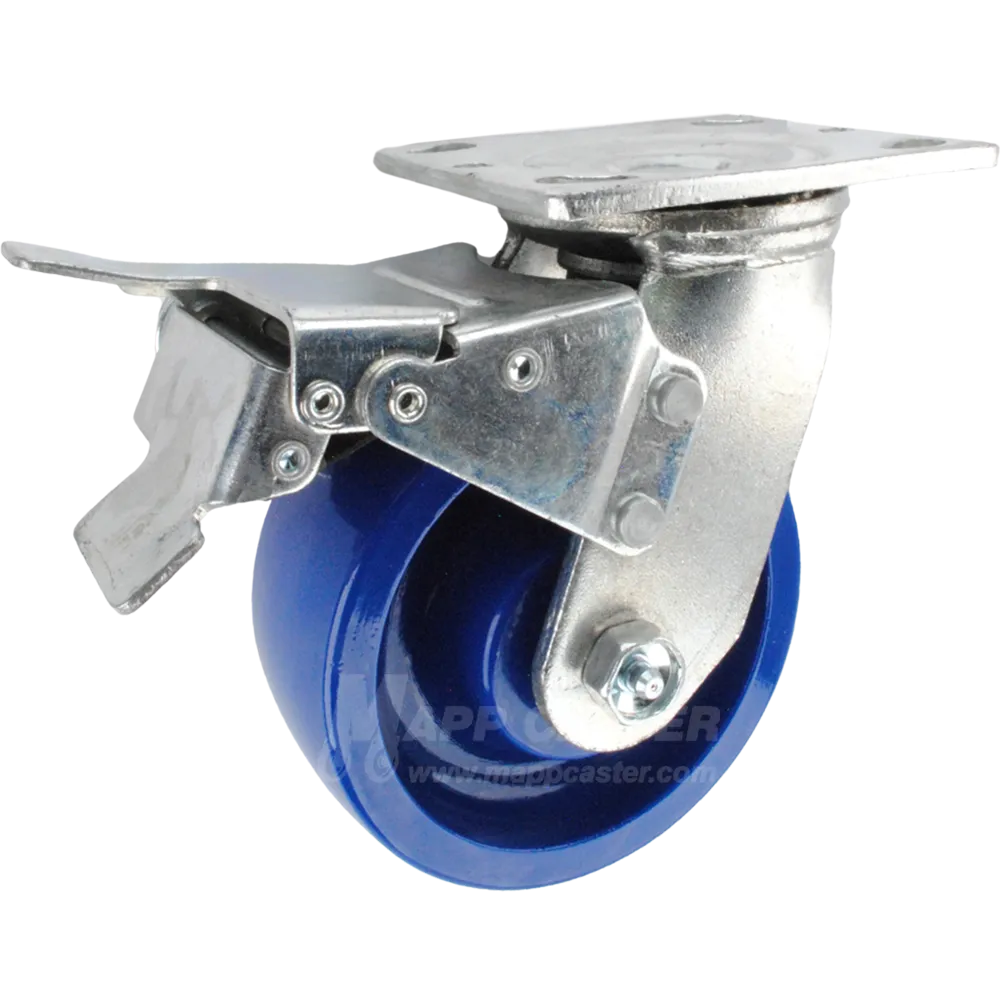

6" x 2" Solid Polyurethane Wheel Swivel Caster with Total Locking Brake - Part #: 146SPU620SBTL
Solid Polyurethane wheels have the advantage of a one piece design which eliminates tread de-bonding failures you see on polyurethane wheels with iron or polyolefin cores while still providing high capacities & excellent durability. They are 100% washable & steam cleanable; they will not be effected by grease, oils, most chemicals, cleaning solutions, blood or brine. These wheels offer more floor protection, non-marking treads, quieter rolling, & smoother rides compared to steel or phenolic wheels while still providing comparable load capacities.
These wheels will be slightly higher in price compared to the polyurethane on polyolefin wheels but you will not have to worry about the tread de-bonding from the core of the wheel.
* Total locking brake casters work best with softer wheels like neoprene, soft rubber, thermoplastic rubber & polyurethane. The softer wheel allows the brake pad to grip the tread effectively. While total locking brakes also work with harder wheels, a strong push may cause slight movement of the caster wheel.
Specifications:
| Load Capacity (lbs.): 900 | Link to Matching Rigid Brake Caster: |
| Wheel Diameter: 6" | Caster Rig Material Type: Cold Rolled Steel |
| Tread Width: 2" | Caster Rig Color/Finish: Bright Zinc Plated |
| Wheel Type: Solid Polyurethane | Swivel or Rigid Caster: Swivel |
| Wheel Bearing Type: See Bearings Options |

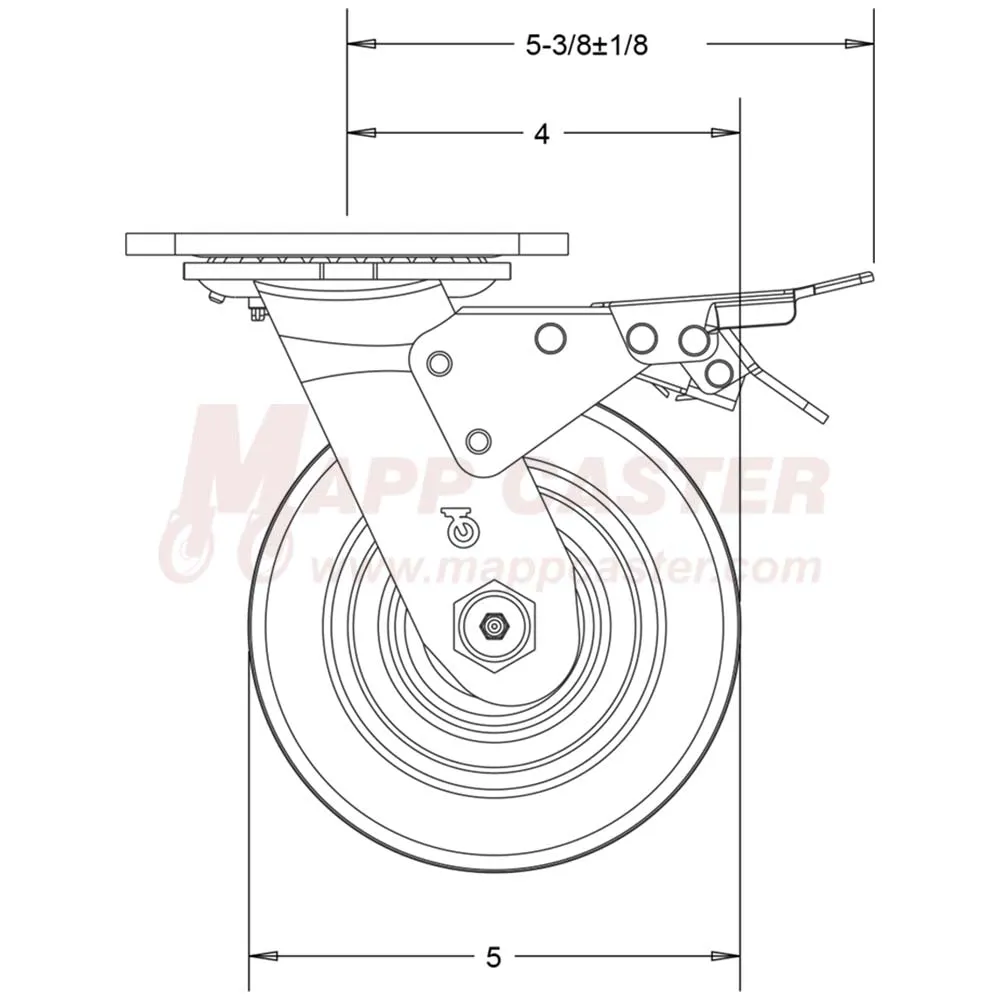

Swivel Radius: 7-7/8" |

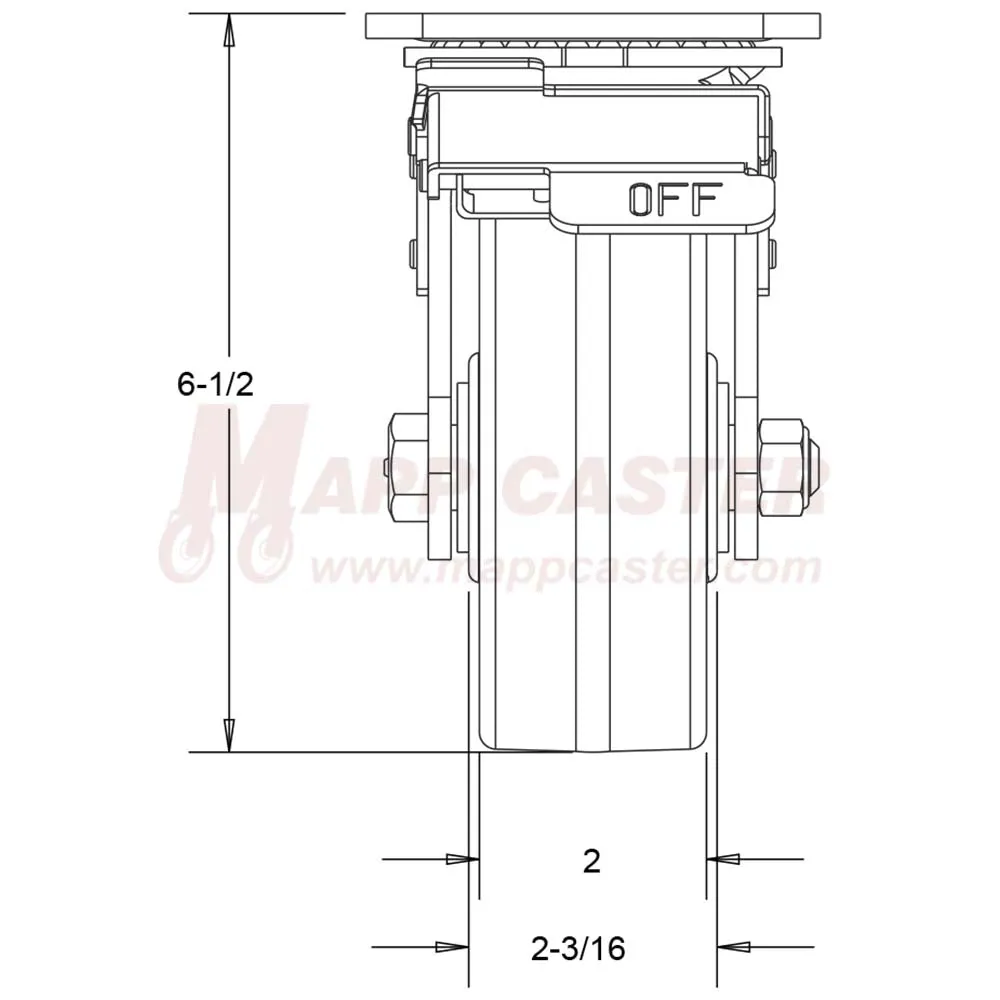

| Overall Height: 6-1/2" | Swivel Construction: Double Ball Raceway - 5/8" Kingpin |
| Temp Range: -20°F to 180°F | Mounting Plate: 4" x 4-1/2" |

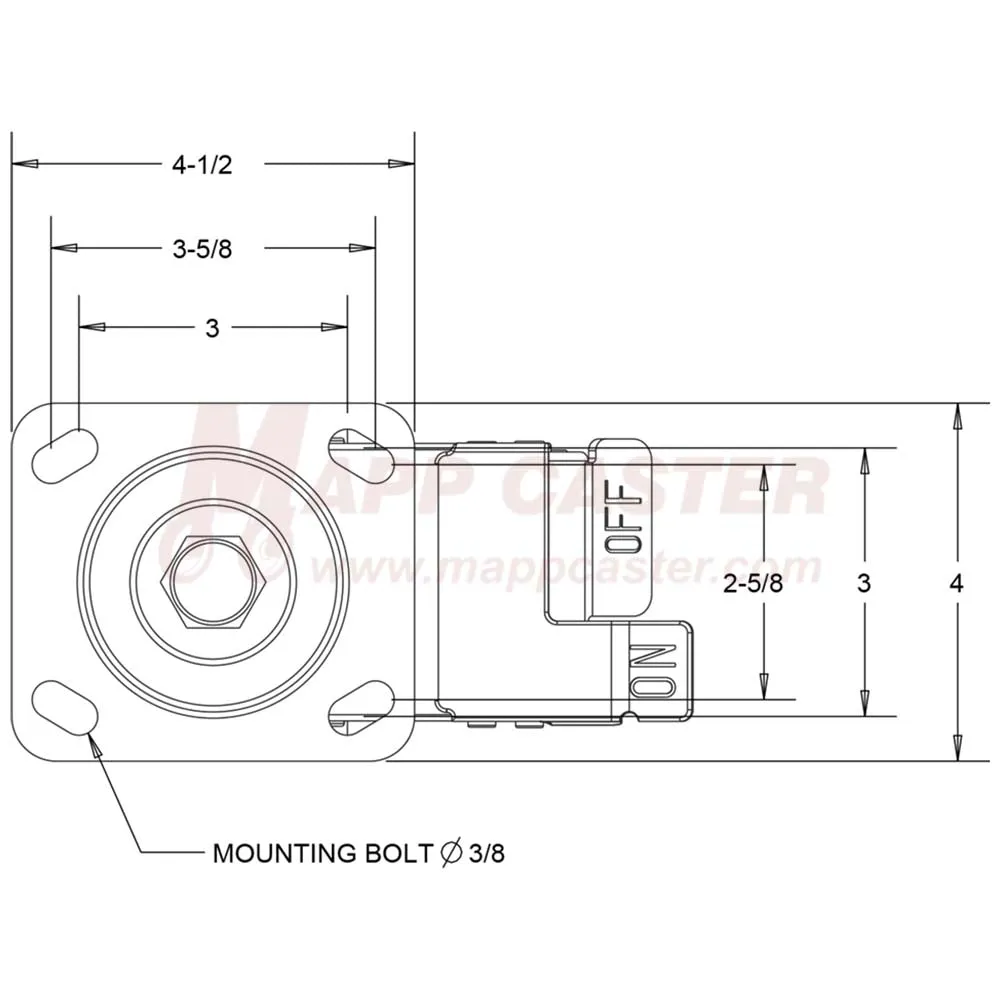

| Wheel Durometer: Shore D 60 ( /-5) | Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Wheel Color: Blue | Mounting Bolt Size: 3/8" or Smaller |
| Link to Replacement Wheel: | Weight: 6.18 lbs. |
